Description

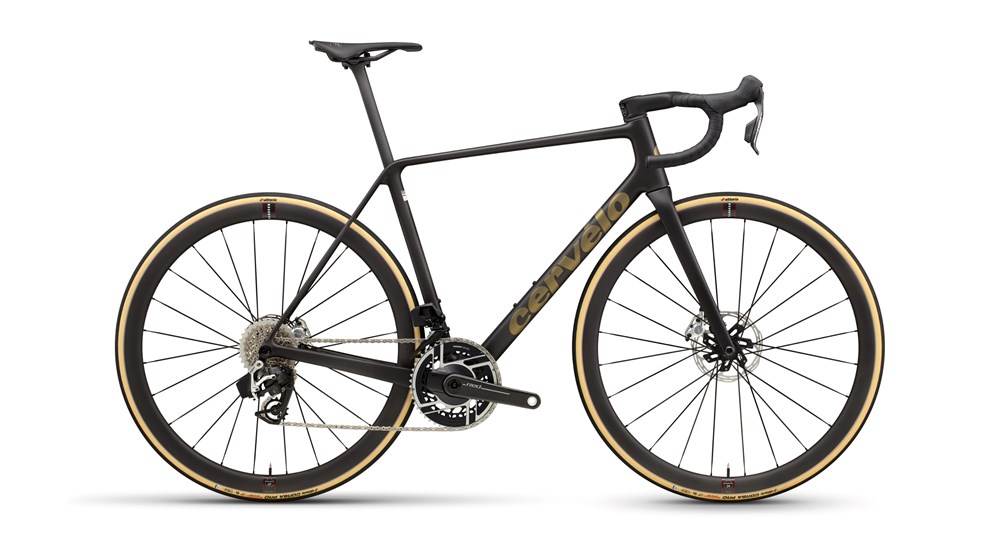

The new 2026 Cervelo R5 is an incredibly light road bike that’s also stiff enough to compete at the highest levels of professional cycling, as Pauline Ferrand-Prevot proved when she rode it to victory at this summer’s Tour de France Femmes.

Colour
Five Black/Bronze
Colour Finish
Satin
Fork
Cervélo All-Carbon, Tapered R5 Fork
Headset
FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
Seatpost
Cervélo SP33 Carbon
Seatpost Sizing
Size 48 – 0mm, Size 51 – 0mm, Size 54 – 0mm, Size 56 – 0mm, Size 58 – 15mm, Size 61 – 15mm
Left Shifter/Brake
SRAM Force AXS E1
Right Shifter/Brake
SRAM Force AXS E1
Front Derailleur
SRAM Force AXS E1
Rear Derailleur
SRAM Force AXS E1
Brake Rotors
SRAM Paceline Centerlock, SRAM Paceline Centerlock
Front Thru Axles
Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length
Rear Thru Axles
Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
Bottom Bracket
SRAM DUB, BBright
Crankset
SRAM Force AXS E1, 48/35T, DUB, with power meter
Crank Sizing
Size 48 – 165mm, Size 51 – 165mm, Size 54 – 170mm, Size 56 – 170mm, Size 58 – 172.5mm, Size 61 – 172.5mm
Handlebar Sizing
Size 48 – 36cm, Size 51 – 38cm, Size 54 – 40cm, Size 56 – 40cm, Size 58 – 40cm, Size 61 – 40cm
Stem Sizing
Size 48 – 80mm, Size 51 – 90mm, Size 54 – 100mm, Size 56 – 100mm, Size 58 – 110mm, Size 61 – 120mm
1-piece Handlebar/Stem
Cervélo HB18 Carbon
Saddle
Prologo Nago R4 PAS Tirox Lightweight
Cassette
SRAM Force E1, 10-33T, 12-Speed
Chain
SRAM Force E1
Front Wheel
Reserve 34TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
Rear Wheel
Reserve 37TA, DT Swiss 240, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Tire
Vittoria Corsa Pro Speed TLR G2.0 700x26c
Max Tire Width
34mm
